Brushify - Mars Pack

Constructing believable offworld environments requires balancing broad horizon lines with fine foreground detail, particularly when rendering the vast, arid expanses of a Martian landscape. The Brushify - Mars Pack provides a focused toolkit for Unreal Engine 5 built specifically to address these challenges. By pairing high-resolution terrain sculpting assets with optimized background geometry and an extensive landscape auto-material system, it enables level designers and technical artists to stand up believable planetary vistas without constructing terrain pipelines from scratch.

Assembling an 8km by 8km Martian Terrain

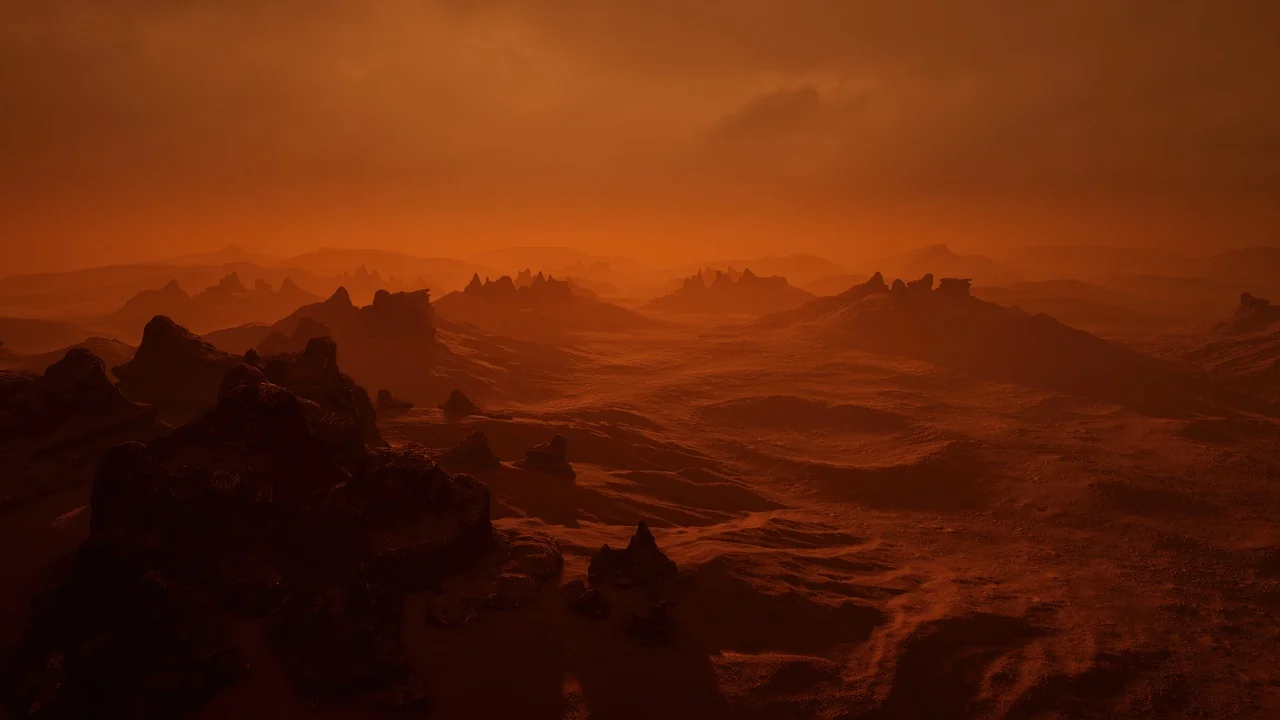

At the center of the pack is a complete, out-of-the-box 64-square-kilometer (8km x 8km) Mars level. This environment is structured to serve as an immediate testbed for gameplay mechanics, cinematic shots, and level layout studies. Rather than presenting raw, disconnected assets, the pre-assembled map demonstrates how the provided geological elements, lighting, and landscape materials interact at scale.

In addition to the expansive terrain map, an asset showcase level is included to isolate individual components for inspection and testing. The full setup works directly with modern Unreal Engine 5 rendering features, supporting Nanite geometry workflows and running Lumen dynamic global illumination and reflections by default. This integration ensures that the deep canyons, rock formations, and sweeping flats react realistically to dynamic offworld lighting conditions straight away.

Sculpting with Mars Alpha Brushes and Horizon Distance Meshes

Terrain generation relies heavily on four unique landscape brushes derived from real-world height data, which are texturized to deliver photorealistic results across varying elevations. These brushes are deployed in two distinct forms: interactive Alpha Sculpting Brushes and dedicated Distance Meshes.

For direct shaping in engine, the package stores four distinct Alpha Sculpting Brushes within the red, green, blue, and alpha channels of a single 8192x8192 texture. This channel-packed configuration allows artists to sculpt characteristic Martian ridges, cratered formations, and mountain crests directly into the terrain in real time while maintaining close artistic control over the topography.

To establish wide background vistas without introducing severe rendering overhead, the four formations are also supplied as standalone Distance Meshes. These optimized background meshes are purpose-built to visually align with the playable terrain, extending visual sightlines to the horizon while protecting performance budgets.

The Brushify Landscape Auto Material and Layer Architecture

The core material driving the landscape surface is the modular Brushify Landscape Auto Material. It automatically applies appropriate surface textures and procedural foliage or debris based on terrain slope and height, drastically cutting down manual painting time across sprawling operational areas. While configured for Martian ground types such as craters and dunes, the underlying shader architecture contains 11 distinct automatic paint layers:

• Craters
• Dunes
• Desert
• Mud
• Beach
• Grass
• Forest
• Snow

The landscape shader incorporates a comprehensive suite of material functions. It supports Runtime Virtual Texturing (RVT) for efficient texture streaming and seamless blending with placed meshes, alongside Parallax Occlusion Mapping (POM) and height-based tessellation to give flat surfaces physical depth. Tri-planar mapping is implemented to prevent texture stretching on extreme cliff angles, and flow mapping simulates natural surface drift and erosion lines. To control visual repetition across massive distances, the material utilizes a reduced distance tiling feature and a three-stage Level of Detail (LOD) system spanning near, medium, and far viewing distances. Because the master shader is built modularly, functions can be customized, rearranged, or disconnected to streamline performance according to project needs.

Mars Rocks, Buttes, and Procedural Spawners

Populating a barren landscape requires varying surface scatter to disrupt uniform ground textures. The pack supplies three variations of Mars rocks and four distinct variations of Mars buttes and cliffs. To bypass the time-consuming process of manually placing thousands of geological assets across an eight-kilometer space, procedural spawners are integrated to scatter rock meshes rapidly across the surface based on the underlying material layers.

Asset construction focuses on strict runtime optimization. All included meshes come configured with five levels of detail (LODs), and vertex counts range from 1,000 to 80,000 depending on the scale and silhouette requirements of the asset. Surface fidelity is maintained using high-resolution texture maps: foliage and rock surface textures scale up to 4K resolution, while the distance terrain structures utilize 8K textures to preserve geological fidelity even when viewed from kilometers away.

Merging Workflows and Multi-Pack Compatibility

Because the shaders included in this kit correspond directly to the standard Brushify Environment Shaders framework, the Mars assets maintain full cross-compatibility with all other packages in the Brushify ecosystem, including packs like Brushify - Forest Pack. When expanding an environment or combining packages within a single Unreal Engine project, the unified shader architecture allows assets to share core master materials, shared functions, and generic utility textures. Importing additional packs simply requires overwriting shared files through the project launcher, ensuring a clean, non-redundant asset directory while granting access to a wider library of multi-biome surfaces.
